All products manufactured are Hot Dip Galvanized by a SABS approved Galvaniser in accordance with SANS 14713, SANS 121 and SANS 32 (NHD Mech).
Certificates for galvanising compliance can be issued upon request. All poles are manufactured from Grade S 355 steel manufactured in accordance with SABS specification.
All products are galvanized prior to Powder Coating
| Luminaire Colour | Galvanised |
| Dimensions | Ø76mm x 2,500mm MH |
| Installation Type | Plinth Mounted |
| Ingress Protection | Coastal areas Suitable |
| Material | Hot Dip Galvanized Mild-Steel Round Tubing |
| Light Source | N/A |
| Power Supply | Inspection Box |
| GP76PA1H | 1m MH Plinth Mounted |
|---|---|
| GP76PA2H | 2m MH Plinth Mounted |
| GP76PA2.5H | 2.5m MH Plinth Mounted |
| GP76PA3H | 3m MH Plinth Mounted |
| GP76PA4H | 4m MH Plinth Mounted |
| GP 76PA5H | 5m MH Plinth Mounted |
| GP76PA6H | 6m MH Plinth Mounted |
| H | Galvanized |
|---|---|
| MK | Matt Black |
| SK | Sandpaper Black |
| Z | Bespoke RAL Colour |

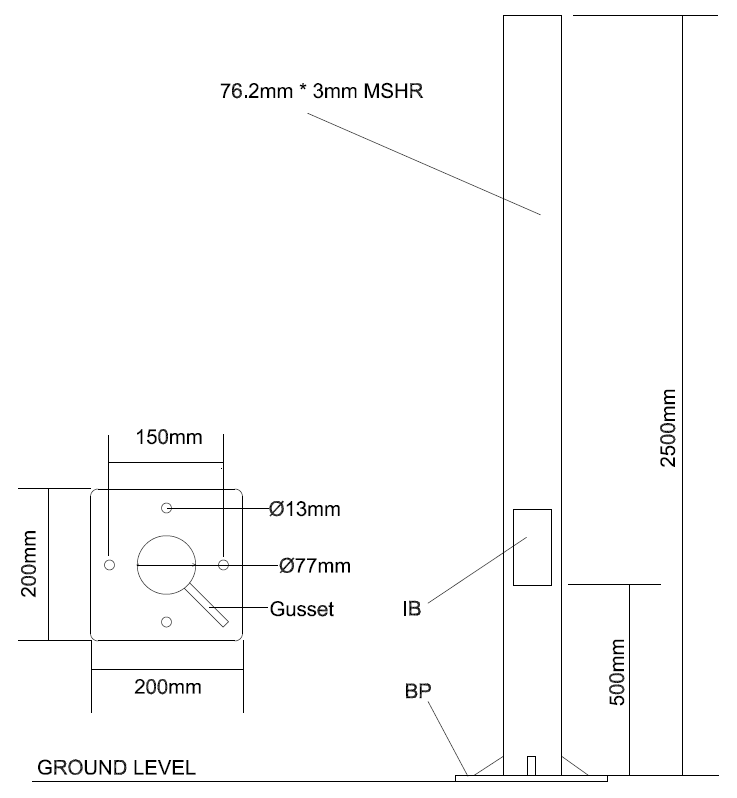

GP76PA2.5H: 2.5m MH Straight Ø76mm Plinth Mounted
28.65 KB | PDF
Poles (Steel Poles & Spigots)
421.68 KB | PDF
