GP76BA2.5H: 2.5m MH Straight Ø76mm Buried

GP76BA2.5H: Pole designs are in accordance with SABS 0225 specification.

All products manufactured are Hot Dip Galvanized by a SABS approved Galvaniser in accordance with SANS 14713, SANS 121 and SANS 32 (NHD Mech).

Certificates for galvanising compliance can be issued upon request. All poles are manufactured from Grade S 355 steel manufactured in accordance with SABS specification.

All products are galvanized prior to Powder Coating

Luminaire Colour	Galvanised

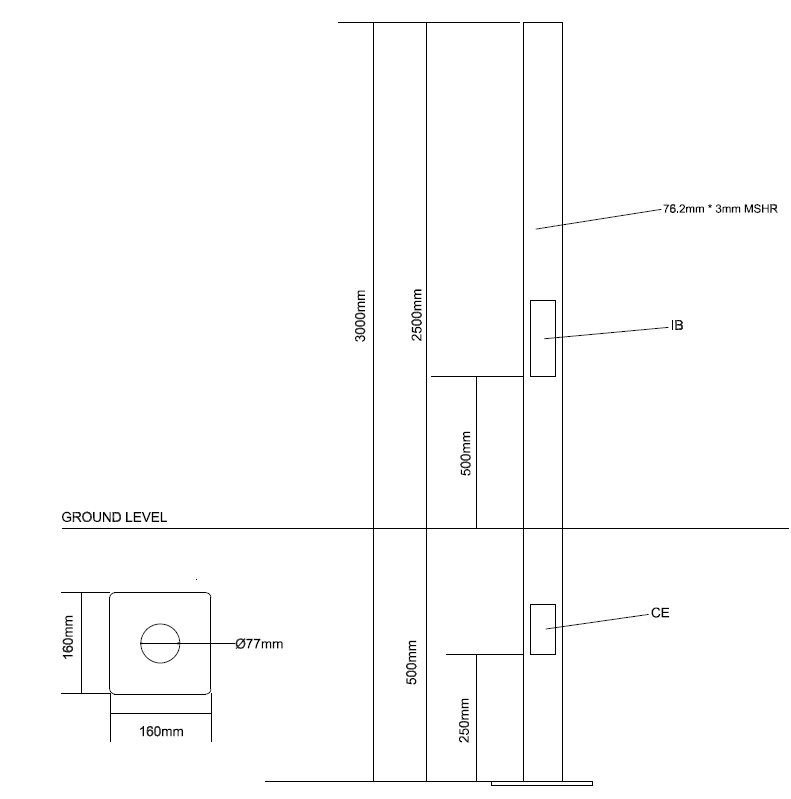

Dimensions	Ø76mm x 3,000mm (L) x 2,500mm MH
Installation Type	Buried 500mm
Ingress Protection	Coastal areas Suitable
Material	Hot Dip Galvanized Mild-Steel Round Tubing
Light Source	N/A
Power Supply	Refer to Cable Entry & Inspection Box

PRODUCT CODES

GP76BA2.5H	2.5m MH Buried
GP 76BA3H	3m MH Buried
GP76BA4H	4m MH Buried
GP76BA5H	5m MH Buried

COLOUR FINISH CODES

H	Galvanized
MK	Matt Black
SK	Sandpaper Black
Z	Bespoke RAL Colour
