All products manufactured are Hot Dip Galvanized by a SABS approved Galvaniser in accordance with SANS 14713, SANS 121 and SANS 32 (NHD Mech).
Certificates for galvanising compliance can be issued upon request. All poles are manufactured from Grade S 355 steel manufactured in accordance with SABS specification.
All products are galvanized prior to Powder Coating
| Luminaire Colour | Galvanised |
| Dimensions | Ø114mm 3,000mm (L) x Ø76mm 1,000mm (L) x 4,000mm MH |
| Installation Type | Plinth Mounted |
| Ingress Protection | Coastal areas Suitable |
| Material | Hot Dip Galvanized Mild-Steel Round Tubing |
| Light Source | N/A |
| Power Supply | Refer to Cable Entry & Inspection Box |
| GP114PA2.5H | 2.5m MH Buried |
|---|---|
| GP114PA3H | 3m MH Buried |
| GP114PA4H | 4m MH Buried |
| GP114PA5H | 5m MH Buried |
| GP114PA6H | 6m MH Buried |
| GP114PA7H | 7m MH Buried |
| GP114PA8H | 8m MH Buried |
| GP114PA9H | 9m MH Buried |
| GP114PA10H | 10m MH Buried |
| GP114PA11H | 11m MH Buried |
| H | Galvanized |
|---|---|
| MK | Matt Black |
| SK | Sandpaper Black |
| Z | Bespoke RAL Colour |

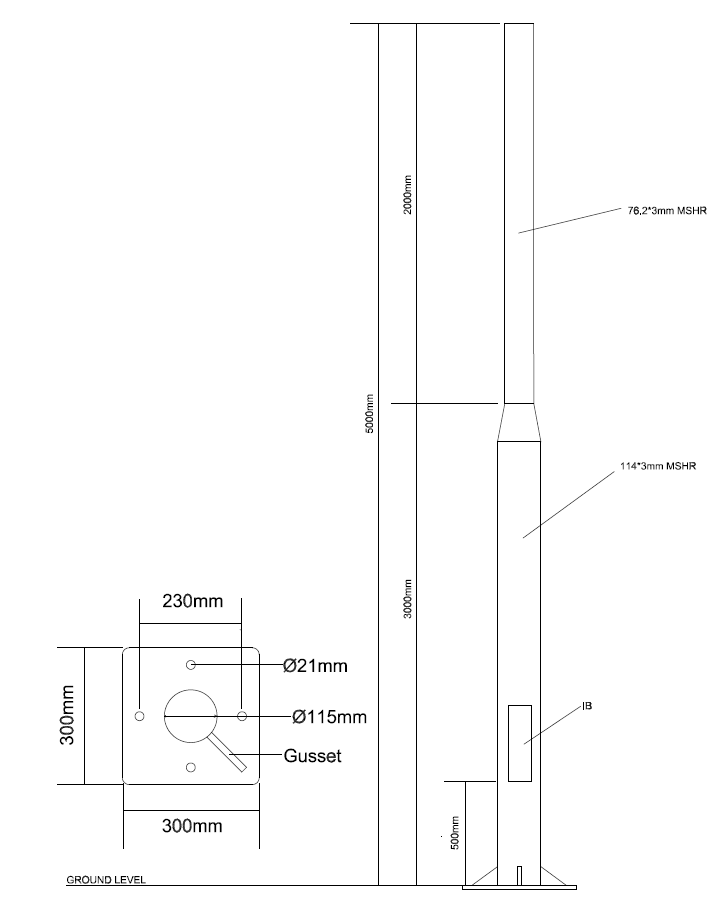

GP114PA5H: 5m MH 1 Step Ø114mm & Ø76mm Plinth Mounted
27.77 KB | PDF
Poles (Steel Poles & Spigots)
421.68 KB | PDF
