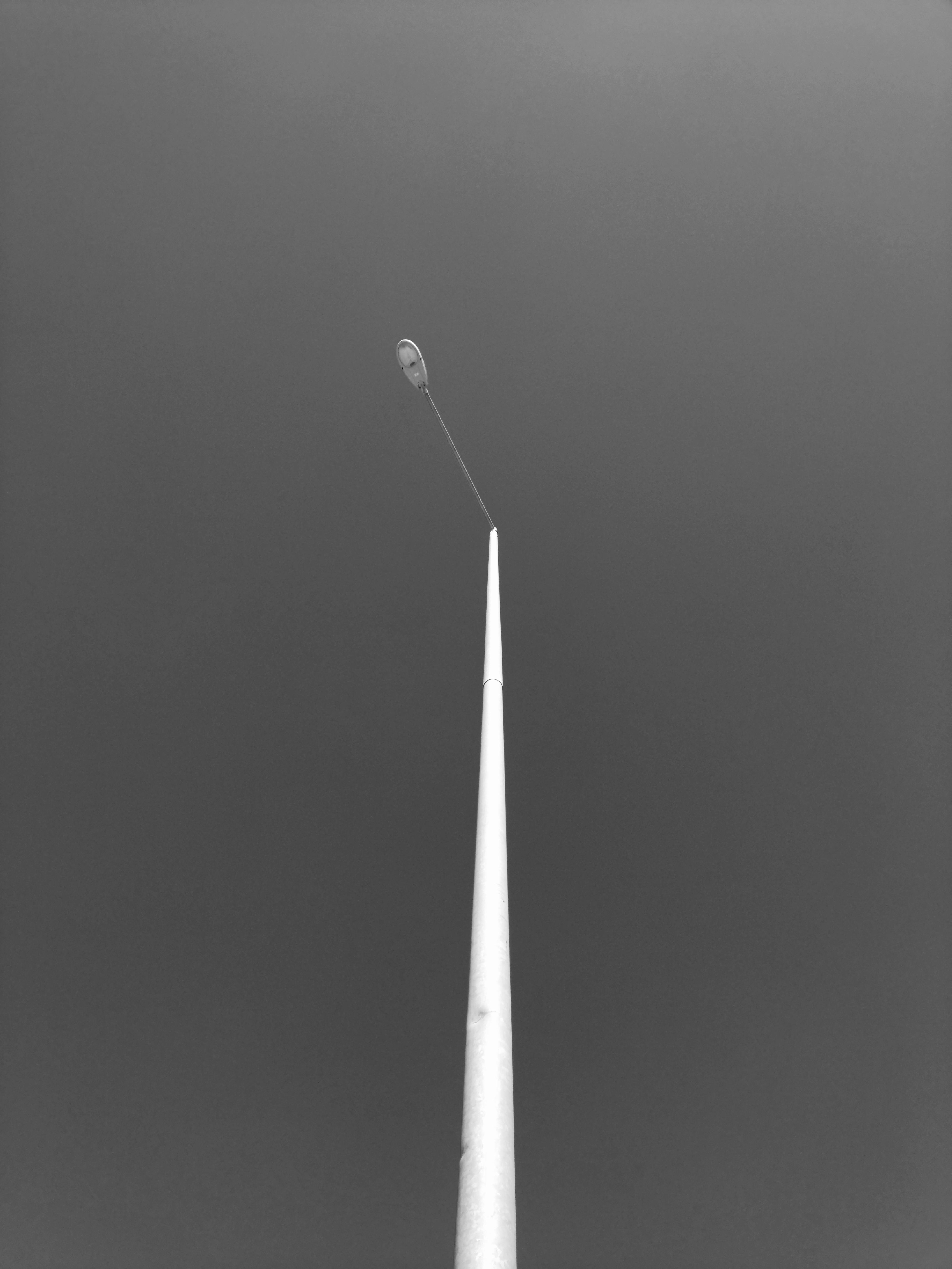

GP114BA8H: 8m MH 1 Step Ø114mm & Ø76mm Buried

GP114BA8H: Pole designs are in accordance with SABS 0225 specification.

All products manufactured are Hot Dip Galvanized by a SABS approved Galvaniser in accordance with SANS 14713, SANS 121 and SANS 32 (NHD Mech).

Certificates for galvanising compliance can be issued upon request. All poles are manufactured from Grade S 355 steel manufactured in accordance with SABS specification.

All products are galvanized prior to Powder Coating

Luminaire Colour	Galvanised
Dimensions	Ø114mm 4,000mm (L) x Ø76mm 5,000mm (L) x 8,000mm MH
Installation Type	Buried 1200mm
Ingress Protection	Coastal areas Suitable
Material	Hot Dip Galvanized Mild-Steel Round Tubing
Light Source	N/A
Power Supply	Refer to Cable Entry & Inspection Box
